LUYE Series Model Full Automatic Water Filling Machine Line
This automatic rinsing, filling and capping machine, could be applicable quantitative filling and capping of drinking water,mineral water,Pure water. It has functions as follows: Disinfectant rinse, aseptic water rinsing; automatically liquid filling tank, inlet material; feed bottles by air conveyer (or screw convey);automatically rinse, open valve and feed caps; not rinse, open valve and feed caps without bottles .Compact structure; reasonable design and convenient operation and maintenance. Main machine is adopted frequency speed control, it runs stable and credibility. Material of contacted with product we use high food grade stainless steel. After exchanging changeover parts, it is applicable for different kinds of PET bottle filling.
We adopt advanced touch screen operation and realize human-machine communication. Function of control system as follows: product speed control, automatic stop with faults and take count of output,.etc.
|Air Conveyor System
Air conveyor is a bridge between the PET bottle blowing machines and 3 in 1 filling machine. Air conveyor is supported by the arm on the ground; the air blower is settled on the air conveyor. Each inlet of air conveyor has an air filter to prevent dust coming into. Two set of photoelectric switch settled in the bottle inlet of the air conveyor, which can adjust the filling machine's speed: "slow-down", "stop", "speed-up", and "start". The bottle is transferred to 3 in 1 machine through wind
Into bottle way is air conveyor direct connection with bottle dial.All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.304/316 stainless steel washing pump make the machine more durable.
mainly composes of bottling barrel, bottling valve, guide rail, lifting device, bottle clamping lift device etc.

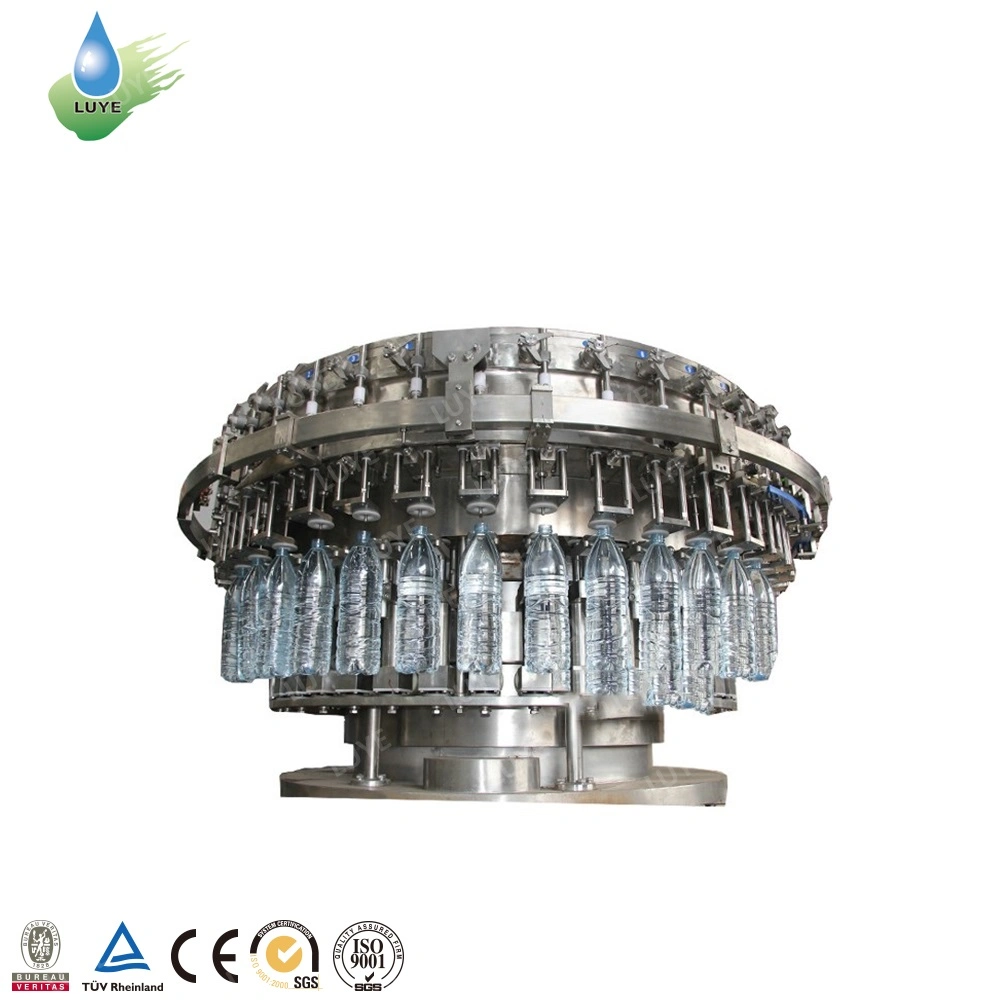

Bottle is conveyed to the bottling machine with the clamp plate of starwheel drive IV, bottling bottle clamp plate supports the bottle neck and rotates together with the bottling, and ascend along the guide rail and then open the bottling valve for bottling,after finishing bottling, it descend and loose the bottling valve, bottling valve may automatically close. Bottle is discharged from the bottling machine along the clamp plate of starwheel drive V.
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
1-Enhanced food safety: Stainless steel 304/316L for all components in contact with your beverage
2-Optimum uptime: 30 % reduction in changeover and maintenance downtime
3-Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
4-Hygiene improvement through volume control and contactless filling
5-Automatic dummy bottles: Safer, easier cleaning procedures
6-Automatic bottle changeover improves uptime
-PLC and Touch screen full automatic control. Easy for operate
-Fastly different bottle size replacement
-Concise structure, reliable and durable, easy to maintain.
|Diameter of bottle mouth:Φ25~38mm
|Free warranty since 12 months after installation & commissioning, or 15 month after delivery date
|RO WATER TRATMENT SYSTEM
•Stainless steel high pressure film shell
•All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
•Online type pressure auto self-protection device •Online type electricity indicator (with stable compensation)
•System safe protecting and alarm system •Stainless steel frame
Choose the above equipment according to your Raw water report.
|RO WATER TRATMENT SYSTEM
Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used
to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Choose the above equipment according to your bottle design and PET preforms.
1)Heat shrink sleeve labeling machine
2)OPP Hot glue melt labeling machine
3)Self-adhesive labeling machine
Choose the above equipment according to your bottle design and label material.
|PE FILM SHRINK WRAPPING PACKAGE MACHINE
1)PE film shrink wrapping package machine
2)Half-Tray carton Shrink wrapping package machine
3)Carton package machine
Choose the above equipment according to your requirement and Packing material
When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
2.THE SAMPLE SERVICE
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty
5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
7 .12 Months guarantee and life-long technical support.
8.Your business relationship with us will be confidential to any third party.
9. Good after-sale service offered, please get back to us if you got any questions.
We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
WOULD LIKE TO KNOW MORE ABOUT LUYE MACHINE EQUIPMENTS, FEEL FREE TO SEND US AN INQUIRY!
