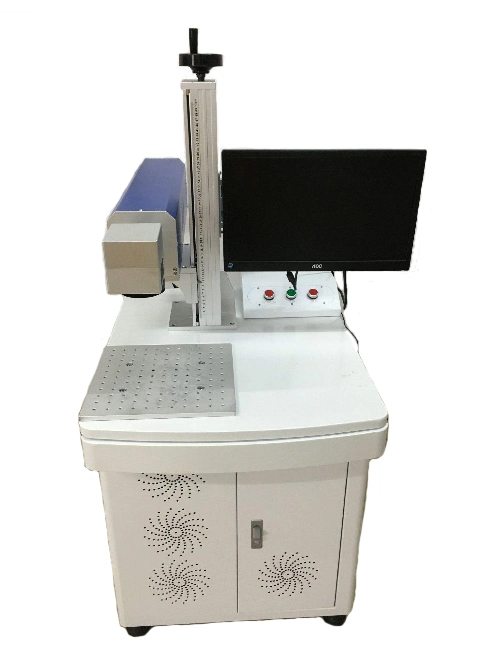

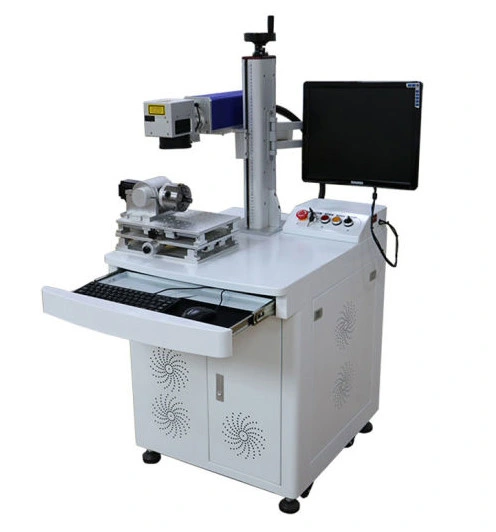

20W 30W Fiber Laser Marking Machine Mass Production Serial Number/VIN Number
Product features:
1. High speed, precision and delicate marking.
2. Small, compact, no need big working space. It comes with large piece of aluminum plate worktable, which helps improving the position precision.
3. 100,000 hours long working life,ultra-low running cost and power consumption.
4.Durable and reliable, the machine can work for long time continuously.
5. Easy operation: suport WindowsXP/2000, Window 7, LABELMARKER label marking software. Strong function, easy for learning and operate.
Product details:
Technical Parameter:
Marking Samples:
Applicable field and material:
Materials: metal and some of nonmetal
Industries: automobile parts, and accessories, hardware tools, precision machineries, electronic components, electrical appliances, apparatus and meters, instruments, mechanical parts, daily necessities, jewelry,medical devices, gifts, oil equipments, inspection equipments, ect.
Packing detail
Company Profile
Wuhan Label Laser Science & Technology Co.,Ltd. has been specialized in researching and manufacturing industrial laser marking equipments, laser processing equipments and supplying marking solutions for customers since 2000.
Why choose us
A. More than 18 years laser marking, processing, manufacturing, research and design rich experience.
B. Professional technical group for customized industrial laser marking system.
C. More than 3000+marking solution cases accumulated in domestic and oversea markets.
D. 100% strict QC for both raw materials and finished products.
E. Utility Model Patent Certificates,involved 3M Flexible label paper marking,Nameplate Auto marking ,Engine cylinder block and head pass-type auto marking,Automobile forged wheel hubs pass-type auto marking, copyright of computer software,etc.
F. ISO,CE,SGS certified and complete aftersales service team.
Q1: What type of the machine suitable for us?
Please tell us what material will be marked/engraved and the depth of marking/engraving, we will advise you the suitable model machines. If you can provide material picture, it is better. It is best if you send sample to us, we will mark on it. Sample with marking pictures and videos will be sent to you for checking. Or we can send the sample to you for quality and marking effect checking.
Q2: If we do not know how to use the machine,can you teach us?
Yes, we will. Our user manuals are together with goods shipment. We can also send operation video to you for study.
If you come to our factory in China, our technicians will offer you free training until you can use machine freely.
Our professional engineer can come to your country for trainning, installation, adjusting, ect.
Q3: How about the delivery time?
For standard machine, lead time is 10-15 days.
Regarding customized machine, we need to check with technicians.
Q4: How about the warranty time?
Our fiber laser marking machine warranty time is 12 months. Please send back the broken parts to us, we will send the new and replaced one to you. We suggest you take one extra set of spare parts together with your order which will be more convinient for your production line continurous running.
Our Clients:
Contact Us
Product features:
1. High speed, precision and delicate marking.
2. Small, compact, no need big working space. It comes with large piece of aluminum plate worktable, which helps improving the position precision.
3. 100,000 hours long working life,ultra-low running cost and power consumption.
4.Durable and reliable, the machine can work for long time continuously.
5. Easy operation: suport WindowsXP/2000, Window 7, LABELMARKER label marking software. Strong function, easy for learning and operate.
Product details:
Technical Parameter:
| Technical parameters | |
| Laser Type | Fiber laser |
| Laser Power | 10W 20W 30W 50W 70W 100W |
| Model | LBGX-300-A, LBGX-300-B, LBGX-300-C, LBGX-300-D, LBGX-300-E/F, LBGX-300-G I/II/III, LBGX-310-B, LBGX-320, |
| Laser Wavelength | 1064nm |
| Laser Source | IPG, Raycus, or others based on customers' requirements |
| Marking Area | 70mm*70mm,110*110mm,145mm*145mm, 150*150mm, 175mm*175mm, 255mm*255mm, 300mm*300mm |
| Marking Depth | ≤0.6mm(depand on power, processed material and procedure) |
| Marking Speed | 7000mm/s |
| Repeated Precision | ±0.003mm |
| Marking Type | Figure, letter, charaters, automatic calender, count, serial no., ect. Barcode: code39/code128/PDF417, ect. QR code: DataMatrix, QR, ect. Graphic: multi-language charaters, CAD, DXF, BMP, JPEG, PLT, ect. Fixed point, straight line, broken line, circle, ellipse, elliptical arc, Bezier curve, ect. can also custom as request. |
| Marking State | Static, uniform motion, encoder |
| Marking Setting | Array direction: horizontal, vertical, curved, arc define coordinates. The arc shape can be set to define the starting angle, the ending angle and the radius. Linear transformation: rotatable character, can make the character X/Y mirror. Fill: define the fill mode and density |
| Minimum Character | 0.3mm |
| Life-span of Fiber Laser Module | 100,000hours |
| Beam Quality | M2 <1.1 |
| Focus Spot Diameter | <0.01mm |
| Operation System and Software | Windows XP/2000 / Windows 7 LABELMARKE |
| Communication Interface | RS-232 serial port, TCP/IP network port, I/O port, ect. |
| Cooling Mode | Air cooling |
| Temperature of Operation Environment | 5ºC~35ºC |
| Humidity of Operation Environment | 30-85%( Condensation is not allowed) |
| Power Input | 220V ( ±10%)/ 50HZ( ±5%) single phase |
| Power Requirement | ≤500W |
| Communication Interface | USB |
| Machine Dimension | 750*650*1440mm |
| Optional | Rotary Device, Moving Table, other customized Automation |
Marking Samples:
Applicable field and material:
Materials: metal and some of nonmetal
Industries: automobile parts, and accessories, hardware tools, precision machineries, electronic components, electrical appliances, apparatus and meters, instruments, mechanical parts, daily necessities, jewelry,medical devices, gifts, oil equipments, inspection equipments, ect.
Packing detail
Company Profile
Wuhan Label Laser Science & Technology Co.,Ltd. has been specialized in researching and manufacturing industrial laser marking equipments, laser processing equipments and supplying marking solutions for customers since 2000.
Why choose us
A. More than 18 years laser marking, processing, manufacturing, research and design rich experience.
B. Professional technical group for customized industrial laser marking system.
C. More than 3000+marking solution cases accumulated in domestic and oversea markets.
D. 100% strict QC for both raw materials and finished products.
E. Utility Model Patent Certificates,involved 3M Flexible label paper marking,Nameplate Auto marking ,Engine cylinder block and head pass-type auto marking,Automobile forged wheel hubs pass-type auto marking, copyright of computer software,etc.
F. ISO,CE,SGS certified and complete aftersales service team.
FAQ
Q1: What type of the machine suitable for us?
Please tell us what material will be marked/engraved and the depth of marking/engraving, we will advise you the suitable model machines. If you can provide material picture, it is better. It is best if you send sample to us, we will mark on it. Sample with marking pictures and videos will be sent to you for checking. Or we can send the sample to you for quality and marking effect checking.
Q2: If we do not know how to use the machine,can you teach us?
Yes, we will. Our user manuals are together with goods shipment. We can also send operation video to you for study.
If you come to our factory in China, our technicians will offer you free training until you can use machine freely.
Our professional engineer can come to your country for trainning, installation, adjusting, ect.
Q3: How about the delivery time?
For standard machine, lead time is 10-15 days.
Regarding customized machine, we need to check with technicians.
Q4: How about the warranty time?
Our fiber laser marking machine warranty time is 12 months. Please send back the broken parts to us, we will send the new and replaced one to you. We suggest you take one extra set of spare parts together with your order which will be more convinient for your production line continurous running.
