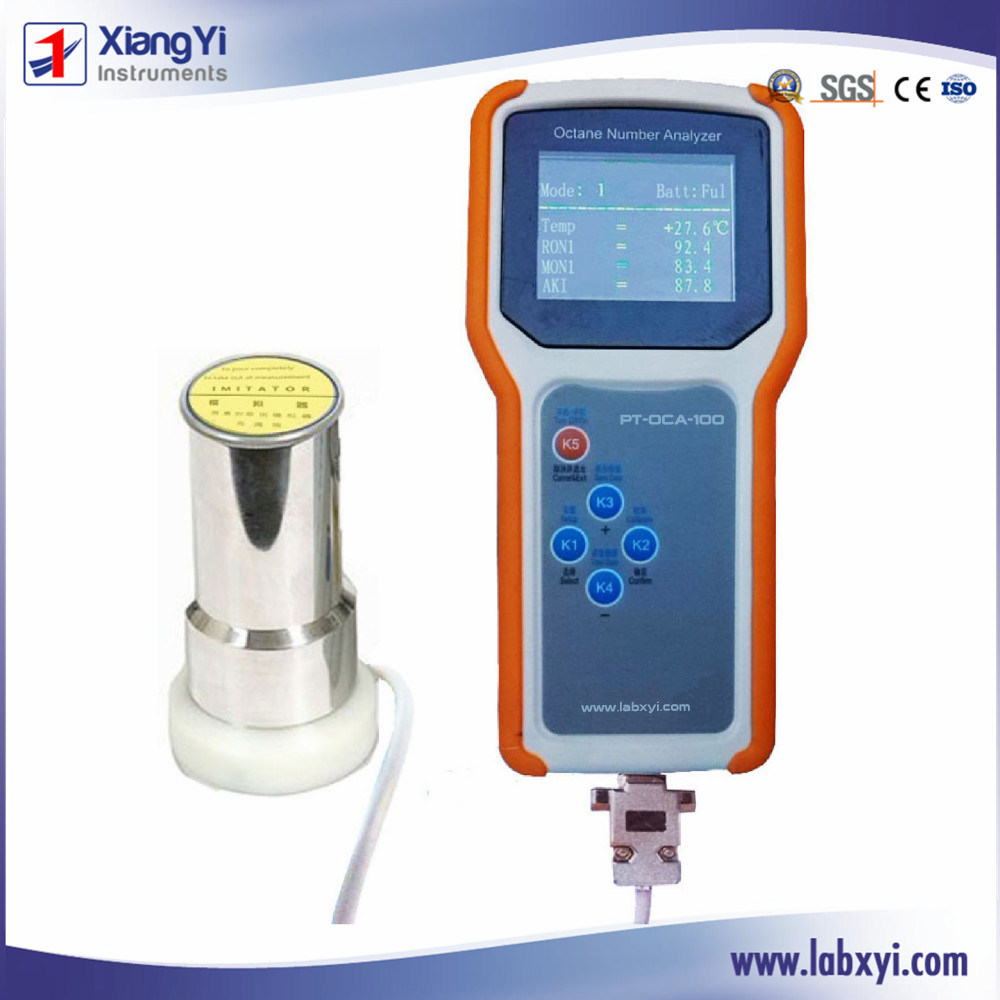

PT-OCA-100 analyzer is the leader in portable rapid analytical instruments, both on-site and in the laboratory. PT-OCA-100 is designed to produce analytical instruments for gasoline, diesel, oil and transformer oils.
PT-OCA-100 analyzer octane analyzer, and petroleum product low temperature parameter analyzer, used to detect diesel, engine oil and aviation kerosene parameters. These instruments are widely used in the quality inspection of petroleum products. Portable octane analyzers are commonly used for on-site analysis of octane in power gasoline, corresponding to motor and research methods C RON and MON ), and are also applicable to cetane analysis of diesel fuel. In addition, the temperature of the liquid to be analyzed and the freezing point of the diesel fuel can also be measured, and the measurement results are displayed on the LCD liquid crystal display.
PT-OCA-100 octane analyzer is widely used all over the world. The measurement method complies with international standards: octane measurement conforms to ASTM D 2699-86, ASTM D 2700-86. Diesel cetane measurement compliance • ASTM D 4737-03 ASTM D 613 EN ISO 5165.
Measuring principle
PT-OCA-100 Octane Analyzer Measurement Principle The principle of the octane analyzer is based on the analysis of the octane number of gasoline and the insulation permeability and electromagnetic induction of the cetane number of diesel. By measuring the dielectric properties of the sample, it is compared with the known parameters in the memory to determine the result. The instrument is very sensitive and can measure small changes in dielectric parameters. Therefore, it is possible to detect octane number, cetane number and other petroleum product parameters.
main feature:
- Measuring gasoline octane number, diesel cetane number
- Measure the condensation point of diesel and measure the purity of the oil
- Transformer oil split voltage measurement, transformer oil dielectric dissipation measurement of fuel oil conductivity measurement
- More comprehensive and accurate measurement of various data of petroleum products
- The repeatable error range is 0.5 octane units
- The absolute error is close to the static measurement value less than 0.5 octane units. Can measure a variety of gasoline containing additives
- Also shows RON, MON and AKI, AKI=(RON+MON)/2
- Measuring diesel cetane number, diesel type and condensation temperature
- Powerful processing chip for fast and accurate data processing, compatible with WINDOW systems
- With temperature correction, low cost of use
- Simple and easy to operate, small size, easy to carry, anti-vibration, anti-solvent, sealed.
- Four rows with backlit LCD display, suitable for low temperature environment, power indication, external low voltage power supply.
Specifications:
| Model | PT-OCA-100 |
| Measurement items | gasoline, diesel |
| Octane measurement range | 40-120 (accuracy 0.5) |
| Cetane number measurement range | 20-100 (accuracy 1) |
| Data display | digital display |
| Measurement time per sample | < 10sec |
| Instrument current consumption | 30mA |
| Battery life | 1000hours |
| Operating temperature range | -10 °C ~ +40 °C |
| Operating relative humidity | 30% to 80% RH |
| Operating atmospheric pressure | 64 ~ 106kPa |
| Product Size | Sensor: 60mm × 100mm |
| Host:100mm × 200mm × 40mm |
