Gold Panning Equipment Gold Panning Gold Panning Factory Gold Diamond Separator For Sale

River Gold Mining Equipment Gold Trommel Washing Plant Gold Diamond Separating Machine For Sale  1. Product description 1) Portable Gold Mining Machine Trommel Wash Plant2) Mobile gold trommel is a new type screening equipment, mainlyapplied in sand screening.3) widely used in alluvial gold miningwashing. Has adva

Featured Products

River Gold Mining Equipment Gold Trommel Washing Plant Gold Diamond Separating Machine For Sale

1. Product description

1) Portable Gold Mining Machine Trommel Wash Plant

2) Mobile gold trommel is a new type screening equipment, mainlyapplied in sand screening.

3) widely used in alluvial gold miningwashing. Has advantage of high capacity, convenient to move,easy operation characteristic etc, is popular in home and abroad.

River Gold Mining Equipment Gold Trommel Washing Plant Gold Diamond Separating Machine for Sale

2. Tecnical Details

River Gold Mining Equipment Gold Trommel Washing Plant Gold Diamond Separating Machine for Sale

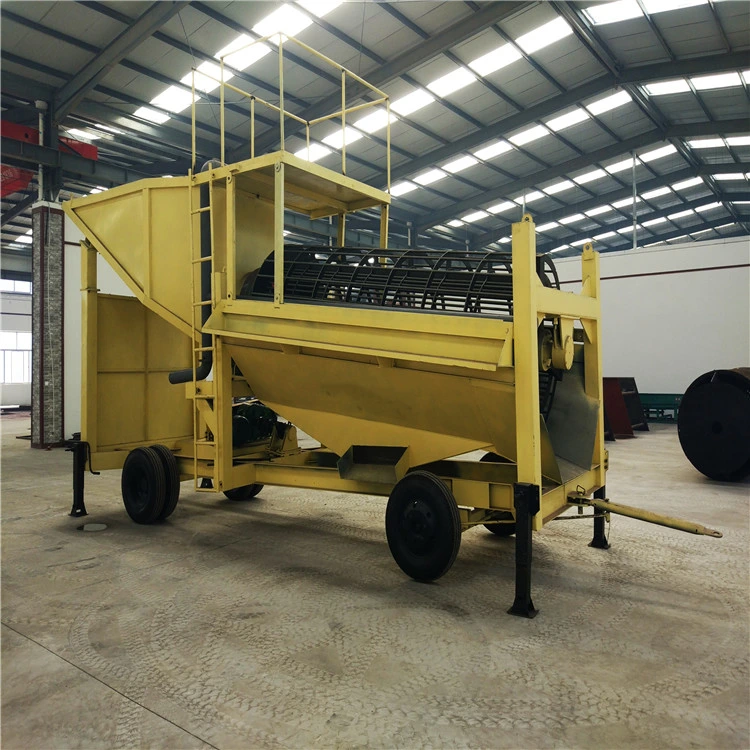

1.Portable gold trommel
Model: MGT50
Quantity:1 Set
Dimension: 7000x2000x3000mm
Motor power:24 kw
Hopper size:2000x2200mm
Weight:4800 kg
 Capacity: 50tph
2.Screen System
Name: Gold Trommel Screen
Quantity: 1Set
Size (mm): according to processing capacity
Remark: 2 layer trommel screen
Function: for washing, screening and separating the minerals
Water spray pipes: on both sides of the trommel
Mesh size: `12mm and 6mm or according to clients requirement
River Gold Mining Equipment Gold Trommel Washing Plant Gold Diamond Separating Machine for Sale

River Gold Mining Equipment Gold Trommel Washing Plant Gold Diamond Separating Machine for Sale

3.Power System
Name:Weichai diesel Generator
Quantity:1 Set
Power: 50kw
Brand: Weichai, or as required
Function: supplying power to all the systems

3. Specification

Specification Of Alluvial Gold Mining Machine Trommel Wash Plant
ModelSizeCapacityFedder HopperNumber of WheelsWeight
ET-308*2.25*2.5m30T/H2500*2200mm44T
ET-505.5*2.25*2.7m50T/H2500*2200mm64.8T
ET-10010*2.5*3m100T/H3000*2200mm69.5T
ET-15010.5*3*3.2m150T/H3200*3000mm814T
ET-20012*3*3.5m200T/H3500*3000mm1018T

4. Detailed Images

River Gold Mining Equipment Gold Trommel Washing Plant Gold Diamond Separating Machine for Sale

5.Case:
River Gold Mining Equipment Gold Trommel Washing Plant Gold Diamond Separating Machine for Sale
Model: ETTJ 80

Related Equipment: Vibrating Sluice

Export Country:  Myanmar

Year Of Built: 2016.10

Application: gold washing
Myanmar is rich of gold too, but there are lots of clay, which is big obstacle in gold washing process, so clay removing is very important progress during work.
According to this situation, we designed the machine with long scrubber to make sure clay can be removed and gold can be released
The machine is equipped with vibrating chutes, compared with traditional gold felt, it can move up and down so the clay will not hardened, after testing the gold recovery rate had reached 95%.


6. Packing and Shipping

Delivery Time:7-30 days, depend on orders;
1,LCL : Wood case or channel steel frame with iron piece
2,FCL : Nude and firmed in container (20GP, 40GP, 40HQ)


River Gold Mining Equipment Gold Trommel Washing Plant Gold Diamond Separating Machine for Sale


7.After Sales Service

After-Sales Service

* Design outlet with 3D drawing photo

* Producing according to the design

* Inspection and testing before delivery

* Engineers installation and training service overseas
River Gold Mining Equipment Gold Trommel Washing Plant Gold Diamond Separating Machine for Sale



8.Company Introduction

Shandong Eterne Machinery Co.,Ltd. Is large gold mining service company,Specialized in designing,manufacturing, installing and debugging of gold mining equipment as well as providing flow sheet design and course of training of mining. Our company was founded in 2015 year as one of leading manufacturer of gold mining equipment in China.Main Products: Gold trommel, centrifugal concentrator, vibrating sluice, clay washer, vibrating screen, gold dredger etc.was well sold both home and abroad. Exported to Russia, Laos, Vietnam, Kazakhstan, Tajikistan, North Korea, the Philippines, Mongolia, Myanmar, Papua New Guinea, Indonesia, Fiji, South Africa, Ghana, Benin,

9.FAQ

Q1:What about the delivery?

     We can offer our equipment by containers or bulk ship, just depend on your actual request.

Q2:What is the warranty?

     We provide 1 year warranty and free repair if quality problems emerge within warranty peride.

Q3:What's the payment methode?
     We can accept T/T, L/C, WESTERN UNION and so on.

Q4:Is it factory?

     Yes,we have our own factory.and welcome to visit our factory.thanks

Q5.Whether it can be customized according to customer requirements?

     Yes,we can design according to customer's requirement,we have many kinds of model.you can choose the suitable one.
