Electric electric scissor lift platform

Mini Electric Hydraulic electric Scissor Lift Platform Self propelled Mini Scissor Lift is developed from mobile mini scissor lift. Operators can control moving, turning, lifting and lowering standing on the platform. It\'s very compact and portable. Lifting height: 3m~4m. Load capacity: 300kgIntroduction:Mov

Featured Products

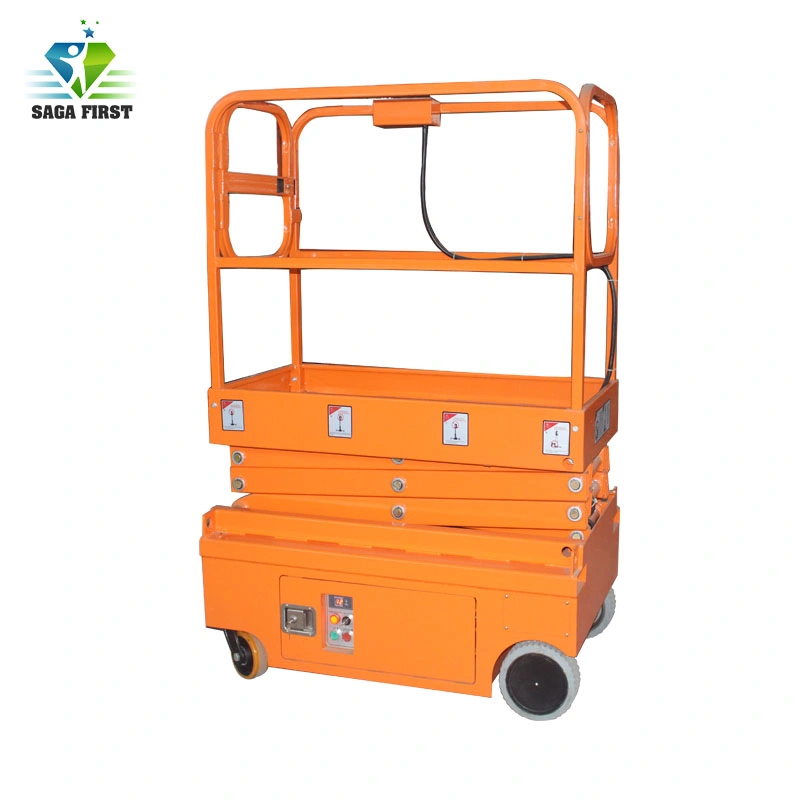

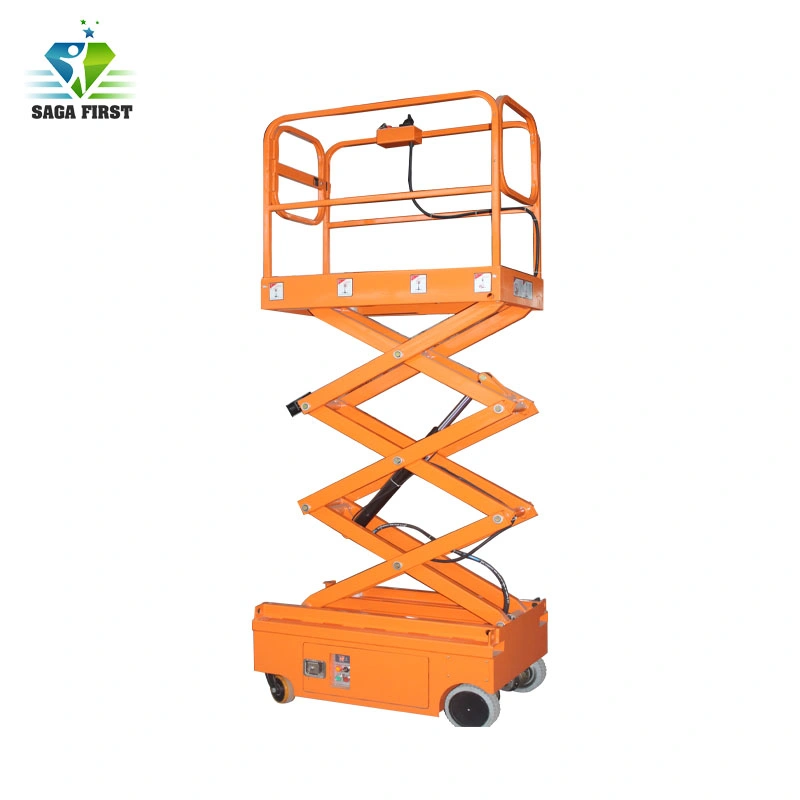

Mini Electric Hydraulic Electric Scissor Lift Platform

Mini Electric Hydraulic electric Scissor Lift Platform

Self propelled Mini Scissor Lift is developed from mobile mini scissor lift. Operators can control moving, turning, lifting and lowering standing on the platform. It's very compact and portable.
Lifting height: 3m~4m. Load capacity: 300kg


Introduction:
Moving manually and lifting by battery power.
Platform height from 3.0m and 3.9 available.
Very Small Boday, easier to use.

Features & Advantages:
Self-drive system for on site maneuvering from platform (stowed)
Roll-out deck extension keeps everything you need within arm's reach (optional)
Non-marking tyres
Power source - 24V (four 6V AH batteries)
Fit through narrow doorways and aisles
Compact dimensions for space efficient storage.

Configurations:
Electric driving motor
Electric driving control system
Electric motor and hydraulic pump station
Durable battery
Battery indicator
Intelligent battery charger
Ergonomics control handle
High strength hydraulic cylinder

Specification:
Model TypeSPS3.0SPS3.9
Max. Platform Height (mm)30003900
Max. Working Height (mm)50005900
Lift Rated Capacity (kg)300300
Ground Clearance (mm)60
Platform Size (mm)1170*600
Wheelbase (mm)990
Min. turning radius (mm)1200
Max. Drive peed(Platform Lifted)4km/h
Max. Drive Speed(Platform down)0.8km/h
Lifting/falling speed (SEC)20/30
Max. Travel Grade (%)10-15
Drive motors (V/KW)2×24/0.3
Lifting motor (V/KW)24/0.8
Battery (V/AH)2×12/ 80
Charger (V/A)24/15A
Max allowable working angle
Overall Length (mm)1180
Overall Width (mm)760
Overall Height (mm)18301930
Overall Net Weight (kg)490600

Mini Electric Hydraulic Electric Scissor Lift PlatformMini Electric Hydraulic Electric Scissor Lift Platform
Mini Mobile Scissor Lift is specially designed for indoors aerial work. It is famous for its extreme small body size and light weight. Now it is widely used in supermarket, low height maintenance, decoration company and domestic maintenance. The simple structure make it much easier to operate and maintenance. Extremely low failure rate has gained customers' good graces.Mini mobile scissor lifts moves by man manually and lifts by battery power


Model TypeMMS3.0MMS3.9
Max.Platform Height(MM)30003900
Min.Platform Height(MM)630700
Platform Size(MM)1170×6001170*600
Rated Capacity(KG)300240
Lifting Time(S)3340
Descent time(S)3030
Lifting Motor(V/KW)12/0.8
Battery Charger(V/A)12/15
Overall Length(MM)1300
Overall Width(MM)740
Guide rail height(MM)1100
Overall Height with Guardrail (MM)16501700
Overall Net Weight(KG)360420

Configurations:
Up-down control panel on the body
Up-down control panel on the platform
Electric motor and hydraulic pump station
High strength hydraulic cylinder
Emergency button
Durable battery
Battery charger
Emergency decline button
Safety support legs

Safety Precautions
Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
Emergency decline valve: it can go down when you meet an emergency or the power off.
Anti-dropping device: Prevent falling of platform

Mini Electric Hydraulic Electric Scissor Lift PlatformMini Electric Hydraulic Electric Scissor Lift Platform
Our Service:

1.We can design the customerized mini small scissor lift as per your requirement.

2.The most suitable model will be recommended to you once we know about your requirement.

3.Shipment can be arranged from our port to your destination port.

4.Opetion video can be sent to you if needed.

5.Maintenance video will be given once the truck mounted  scissor lifts break down to help you repair.

6.Parts of mini small scissor lift can be sent to you by express within 7 days if needed.


Frequently Asked Questions:

1.How can customer  buy parts once it break down?

The mini small scissor lifts adopt most of the common parts of hardware.You can buy the parts in your local hardware market.

2.How can customer repair the mini small scissor lifts.

One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.

3.How long is the quality guarantee?

One year quality guarantee.If it breaks down within one year,we can send the parts free of charge to you.

Certificate:CE ROHS SGS IOS ETC.
